Project Overview
Concerns were raised by the maintainer on the excessive track deterioration of the newly constructed tram stop.
Novus Rail were commissioned by Wilde Consulting Engineers to conduct various surveys and assess the results against the approved from construction design.
Locations

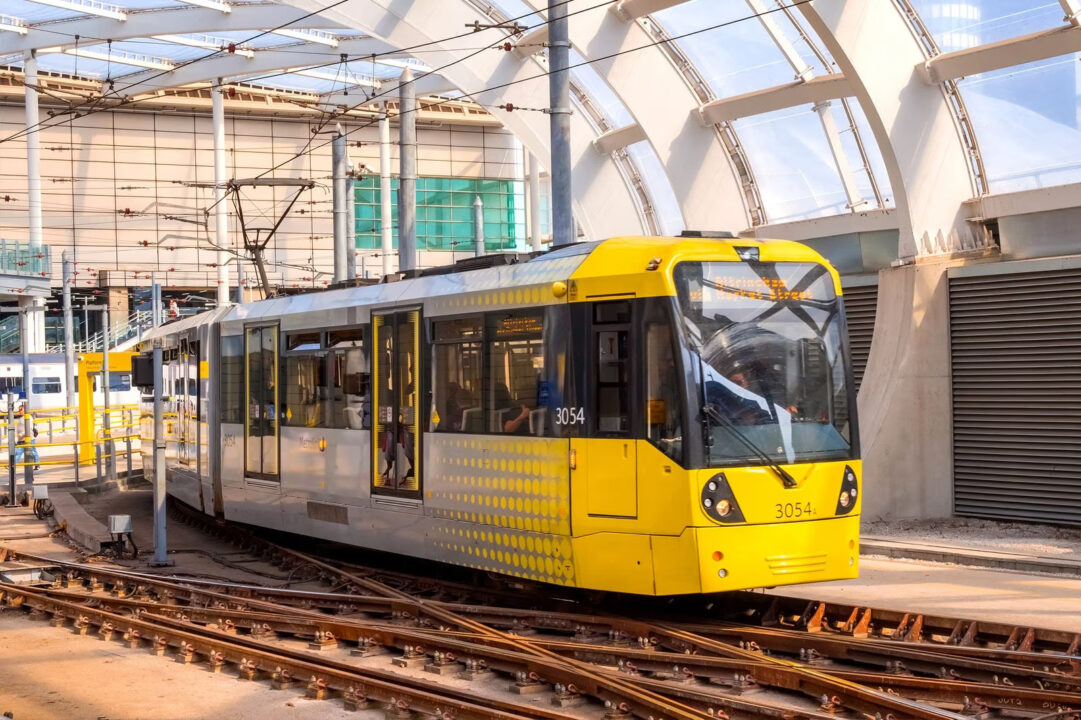

Victoria Tram Stop, with 3nr through lines and 4nr complex S&C layouts including a scissors crossover, fixed diamond layout and standard crossovers.
Services Undertaken
A complete detailed survey of the tram stop was undertaken including topographical surveying, platform gauging, track condition examination and OLE heights and staggers.
The results were then reviewed against the approved for construction design the new tram was built against to determine if construction issues had led to the degradation of whether it was inherent design issues.
Our team provided a comprehensive report of the station outlining any and all issues found along with a projected lifespan of the depot in it’s current condition.
Key Project Specifics
Topographical Survey
Track geometry, gauge and cant measured at every rail baseplate position
Platform edge surveyed at 1m intervals
Height & stagger survey undertaken throughout
Track Condition Examination
Track gauge, cant and twist measurements manually verified at all S&C and plain line sections
Rail head and side wear measured at 10m intervals
Grout pads depths measured at every baseplate position
Schedule of defects provided with priorities for resolving
Structure Gauging Survey
Platforms gauged at 1m intervals
All lineside signals
Cheetham Hill overbridge
Driver hop-ups
Approved for Construction Design Verification
Track geometry compliance
Track construction compliance
Value Added by Novus Rail
With our team’s comprehensive knowledge of track design and maintenance we were able to provide technical support to the Client after issuing the reports and advise on where best to focus future improvements at the tram stop.
