Project Overview
20km of condition led track and drainage renewals between Coleraine to Londonderry, including partial remodelling of Coleraine station junction and Bann (bascule) lifting bridge.
Services Undertaken
Validation of the outline design (GRIP 3) and preparation of the detailed Permanent Way design (GRIP 4+5), for full renewal of the track and drainage systems.
Plain line design, switch and crossing design, direct track fastening design and structure clearance analysis

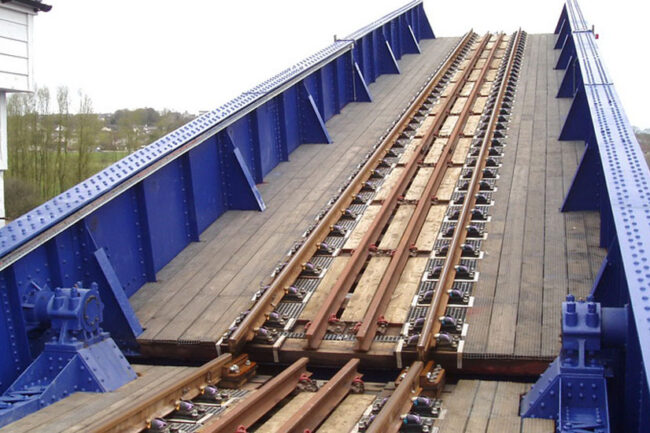

The track design over Bann River bridge was extremely complex as it needed to accommodate a novel rail joint system that allowed the bridge lift and also accommodate the expansion and contraction of the rails over the bridge
Designs were prepared in line with NI Railway standards
Key Project Specifics
North Ireland Railway network
20km of track renewal design
New guard rail systems over underbridges
New adjustment switches at underbridges
Increased line running speeds throughout
Switch and crossing remodelling designs
Track drainage design
Direct fastening design
Formation design
Structure gauging analysis
CWR Stressing plans
Provision of setting out data

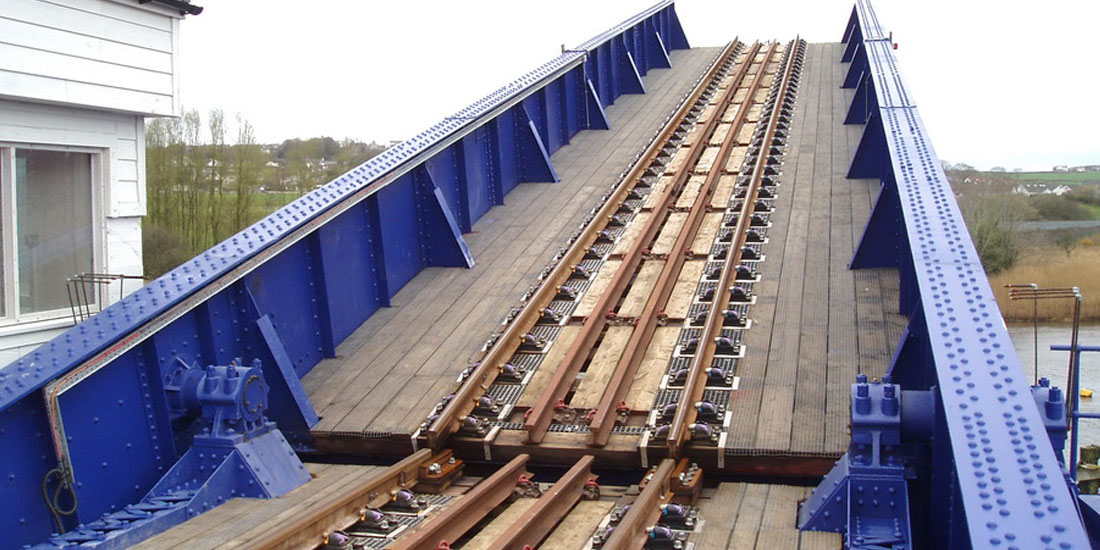

Bascule (lifting) bridge track fastening design
Value Added by Novus Rail
Minimisation on the scope of track work to be undertaken and ensuring compliant structure clearances at Entry into Service stage, along with the prompt delivery of high quality. Permanent Way design submissions
