Project Overview
Isle of Man Railways commissioned Novus Rail to undertake the complete renewal and remodelling design of Douglas Yard as it was life expired and required complete renewal
Location

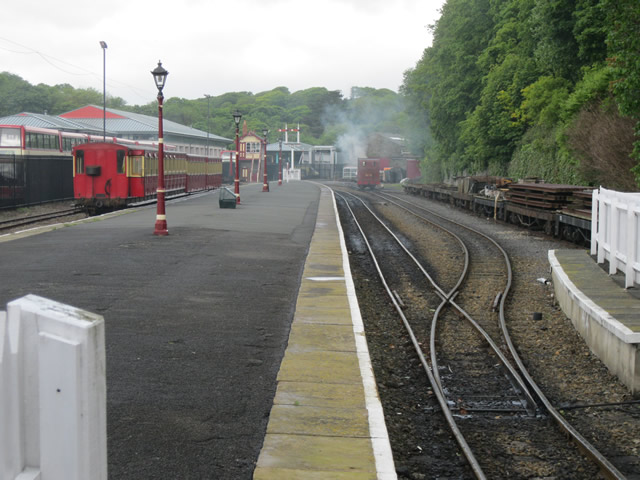

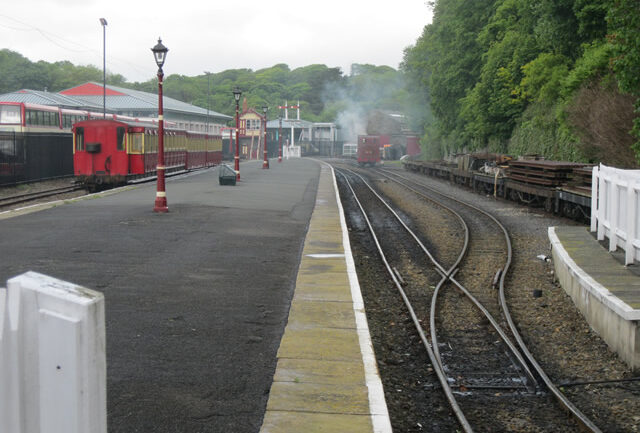

Douglas Station and Yard junction, Including the train maintenance workshop, coal bay and passenger platforms
Services Undertaken
Preparation of the outline and detailed design for the railway yard junction renewal (partially concrete for road deliveries) and optimisation of the passenger interface at platforms
Significant design aspects also included structural concrete yard slab design, HGV swept path analysis, surface water drainage design and new cable routing strategy
Designs produced in line with IoM Railways standards
Key Project Specifics
Isle of Man Railway key station
New (CEN 39) 1 in 7.85 standard turnout design
Production of S&C manufacturing designs for 9nr layouts
Overall horizontal and vertical track alignment design
Partially concrete slab track system in junction area
Concrete slab track structural design
Slab surface water run-off design contouring
Drainage design for new yard slab, including interceptor
New coal pit design for steam locomotives
HGV swept path analysis for coal bay deliveries
New (CEN 39) fixed Buffer stop design
Determining platform gauging requirements
Platform gauge clearance and stepping distance analysis
Cable duct routing designs
Value Added by Novus Rail
Developing a new bespoke turnout design to suit the yard and station operating requirements / spatial constraints, competently designing this configuration within the entire yard junction layout as standard units
Delivery of all design services within a single organisation
